Center plate with timer function universal
Part Number: CD5232T3SW
Trade Price: £0.00
Price: £135.13
Description

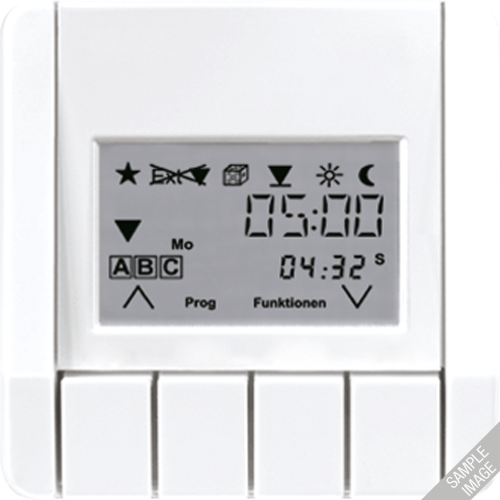

JUNG CD5232T3SW center plate with timer function
Center plate for motor control inserts ref.-no.: 230 ME, 232 ME and 224 ME
Function
The blinds/shutter are controlled with the button â–² (moving upwards) and the button â–¼ (moving downwards).
Short operation (up to 1 sec.): The blind remains in motion for the duration of the push-button action. This function is used to adjust the louvres of the blind.
Long operation (at least 1 sec.): Blind or shutter remains operated for approx. 2 min. i.e. "continuous operation".
The device enables the individual storing of one up and one down operation time.
These two blind operation times are repeated every 24 hour. This provides comfortable, automatic blinds control which can be used for presence simulation.
Product characteristics
- Simple operation with four key
- Display of the next moving time
- Three memory programs for a total of up to 18 switching times
- Factory-programmed switching times in two memory programs
- Random function
- Astro function
- Individual Astro function with Astro time shift
- Random and Astro functions can be combined
- Automatic summer/winter time switching
- Individual motor operating times adjustable
- Programmed switching times are permanently safe
- Actual data (time, month, date, day) safe up to 24 hours (no attendance and no back-up batteries required)
- Wind alarm function via extension unit (only with motor control insert ME 232)
