Description

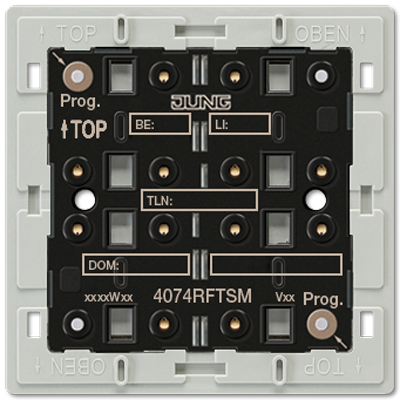

KNX RF radio transmitter module 4-gang

Compatible with cover kit 4-gang, complete, ref.-no.: xx 404 TSA xx
Compatible with cover 4-gang with symbols, ref.-no.: xx 404 TSAP xx
Adapter frames are included in delivery: ref.-no. LS 4 AR for LS range (pre-mounted) and ref.-no. CD 4 AR for CD range. AS / A ranges without adapter frame.
Can not be combined with frames in Flat Design.
Project design and commissioning with ETS5 or a more recent version.
ETS product family: Push-button
Product type: 4-gang push-button
4 red LEDs: actuator status
1 blue LED: transmission status

Intended use

Radio operation of loads, e.g. light on/off, dimming, Venetian blinds up/down, brightness values, calling up and saving light scenes
Operation in cabled KNX systems via radio converter (ref.-no.: MK 100 RF)
Mounting on appliance box according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass)

Product characteristics

Push-button functions for switching, dimming, blinds control, valuators, light scenes, etc
Button pairs for push-button function or rocker function
Status indication with LED
Battery-powered device
