Description

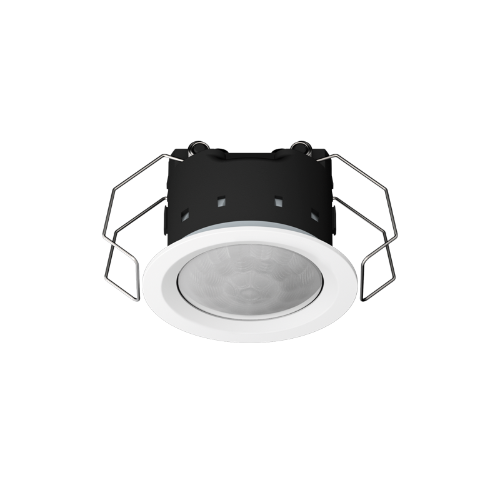

Presence detector mini

with integrated BCU
ETS product family: Physical sensors
Product type: Movement

Intended use

Requirement-oriented control of lighting, room thermostats and other electrical consumers in interior rooms
Clamp mounting in suspended ceilings
Ceiling mounting on fixed ceilings in flush-mounted box according to DIN 49073 (with flush mounting set, ref.-no.: PMM-UP-SET-WW) or in surface-mounted housing (surface mounting set, ref.-no.: PMM-AP-SET-WW)

Integrated bus coupling unit
3 PIR sensors
Detection field 360Â°
Integrated brightness sensor
Deployed as presence detector, motion detector, or for alert operation
Output functions: Switching, staircase function, switching with forced position, value transmitter, light scene extension, operating mode setting for room temperature controller
Detection area extendible by parallel switching of several devices as main unit or extension unit
Manual sensitivity adjustment
Status LED: Flashes during motion detection; depending on programming in normal operation or only during the walking test mode

Manual operation with IR remote control possible (ref.-no.: KNX PM FB IR)
5 function blocks for motion or presence detection each with 2 outputs
Function blocks switchable, e.g. for day/night operation
PIR sensors can be evaluated separately
Brightness sensor function with 3 limiting values
Light control with max. 3 channels, setpoint shift in operation, separate configuration of dimming-up, control and dimming-down phase
Light control can be combined with presence detector function

Detection of the smallest motions e.g. at a workplace for detecting the presence of persons
Switch on: Motion detection and brightness threshold not reached
Switch off: No motion in the detection field and shut-off delay elapsed or brightness threshold exceeded

After reacting and switching on, the motion detection works independently of the brightness.

Brightness-independent detection of motions in the detection field
Switch on: After detection of an adjustable number of motions within the set monitoring period
Switch off: No persons in the detection field and shut-off delay elapsed
