Description

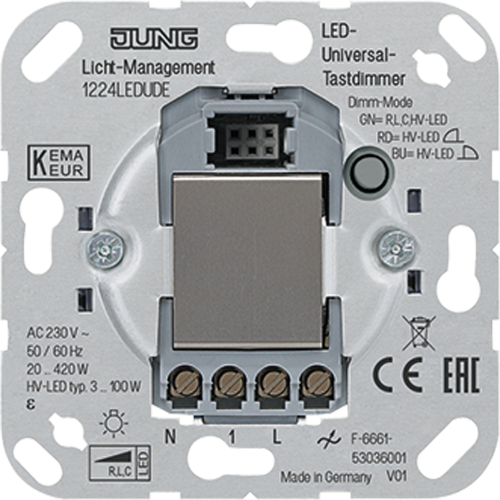

LED universal touch dimmer insert

Intended use

Switching and dimming of incandescent lamps, HV halogen lamps, dimmable HV-LED lamps, dimmable compact fluorescent lamps, dimmable inductive transformers with LV halogen or LV LED lamps, dimmable electronic transformers with LV halogen or LV LED lamps
Installation in appliance box according to DIN 49073
Operation with suitable cover
When dimmable HV-LED or compact fluorescent lamps are connected, only connect lamps of one manufacturer and of the same type.
HV-LED and compact fluorescent lamps generate high pulsed currents, when they are operated in the leading edge phase control. Depending on the design and power rating of these lamps, the connected load of the specified values could vary.

Device works according to the leading edge phase control or trailing edge phase control principle
Automatic or manual setting of the dimming principle suitable for the load
Display of the set operating mode by means LED
Device can be operated without neutral conductor
Switch-on via bulb-preserving soft start
Switch-on brightness can be saved permanently
Minimum brightness can be saved permanently
Connection of extensions possible
Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
Electronic over-temperature protection
Power extension possible by means of power boosters. Do not connect any HV-LED lamps or compact fluorescent lamps in combination with power boosters
