Description

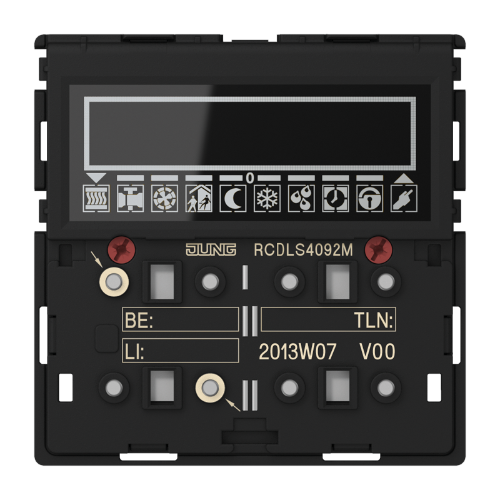

Room controller display module 2-gang

Room controller display can be extended by means of a push-button extension module, ref.-no.: 409x TSEM

Recommended mounting height: 1.5 m

Intended use

Operation of consumers, e.g. lights on/off, dimming, blinds/shutters up/down, brightness values, temperatures, storing and recalling of light scenes etc.
Room temperature control
Installation in mounting box according to DIN 49073

Push-button functions for switching, dimming, blinds control, valuators, light scenes, etc.
Vertical and horizontal key/rocker functions
Two red LEDs per control key as status or operation indicators
Display of values and texts
Running text display for one or two messages with max. 14 characters
Integrated room temperature sensor
Room temperature control with setpoint value preset
Display of room temperature and setpoint temperature
Indication of outside temperature (only with external sensor)
Integrated bus coupling unit
In combination with Facitility Pilot "Multi-Room Control": music play control, display of music titles, artists, etc.
Display unit for the KNX central alarm unit
Fan coil application with up to 8 fan speeds and auto function
OLED graphic display with high resolution
High contrast
Viewing angle 170Â° from each direction
Transparent cover kit (included) for temporary site use without design covers
Connection for a push-button extension module, 1-4 gang
