Description

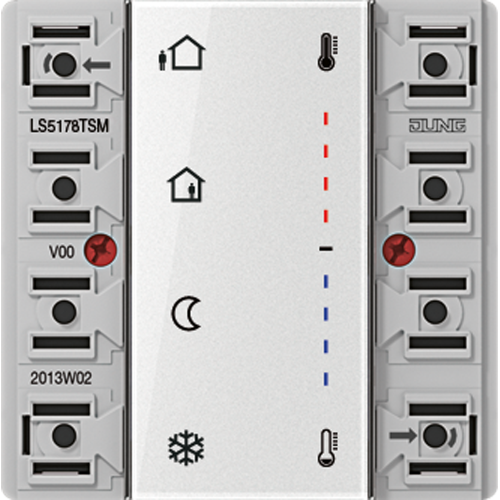

Room temperature controller module 2-gang

Room temperature controller module includes transparent cover and inlay with symbols. For cover kit 2-gang, complete, ref.-no.: xx502 TSA xx in the LS range.

Intended use

Single-room temperature control in KNX installations
Operation of loads, e.g. light on/off, dimming, blinds up/down, recalling and saving light scenes, etc.
Installation in wall box according to DIN 49073

Product characteristics

All buttons can be assigned with push-button sensor functions or functions for controller operation.

Measurement of the room temperature
Room temperature control with setpoint value specification
Extension for room temperature controller
Push-button functions switching, dimming, blind control, value transmitter, scene recall, etc.
One or two functions per button
Completion with cover kit 2-gang
Illuminable inscription field
Two red status LEDs per button - red, green or blue adjustable
One operation LED as an orientation light and to indicate the programming status - red, green or blue adjustable
Brightness of status LED, operation LED and labelling field adjustable; switchable while in operation, e.g. during the night
Disabling function: Disable or function switch-over of all or of individual push-button functions
Alarm function, optionally with confirmation by pressing any button
Energy saving mode (for operation without controller function)
Integrated bus coupling unit
Connection for a push-button extension module, for extension with up to eight additional buttons

Included Products and Components

KNX room temperature controller ref.-no.: LS 5178 TSM
Transparent cover ref.-no.: LS 50 NA (also available as a spare part)

Optional Accessories

Neutral cover ref.-no.: LS 50 NA W, LS 50 NA WW, LS 50 NA LG, LS 50 NA SW,AL 50 NA-L, ES 50 NA-L, AL 50 NA AN-L, ME 50 NA C-L, ME 50 NA AT-L, ME 50 NA D-L
