Description

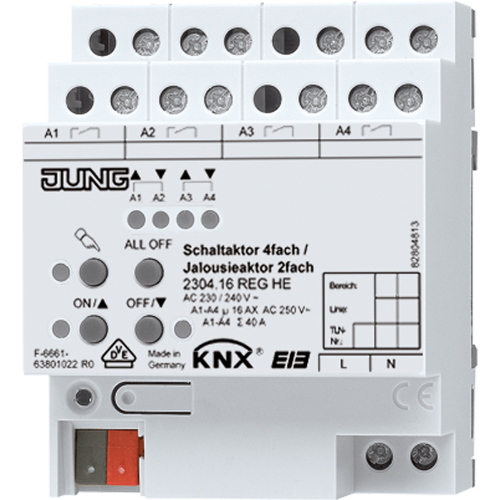

Switch / blinds actuator, 4/2-gang

Rail mounting device, 4 rail units
Switch actuator: max. 4-gang
Blind actuator: max. 2-gang
Max. 2-gang switch actuator/1-gang blind actuator in combination
With manual electronic operation and LED status indication
Only with the ETS 3.0d version or later versions the full functionality will be available.
ETS product family: Output
Product type: Binary output

Intended use

Switching of AC 110 ... 230 V electrical loads with floating contacts
Switching of electrically-driven blinds, shutters, awnings and similar hangings
Mounting on DIN rail in small distributors

Product characteristics

Outputs can be operated manually, construction site mode
Feedback in manual mode and in bus mode
Light scene function
Disabling of individual outputs manually or via bus

Characteristics switch operation

Operation as NO or NC contacts
Logic and restraint function
Feedback function
Central switching function with centralized feedback
Time functions: switch-on delay, switch-off delay, staircase lighting timer with pre-warning function

Characteristics blinds operation

Suitable for 110 ... 230 V AC motors
Hanging position directly controllable
Slat position directly controllable
Feedback of movement status, blind/shutter position and slat position
Forced position through higher-level controller
Safety function: 3 independent wind alarms, rain alarm, frost alarm
Sun protection function
