Description

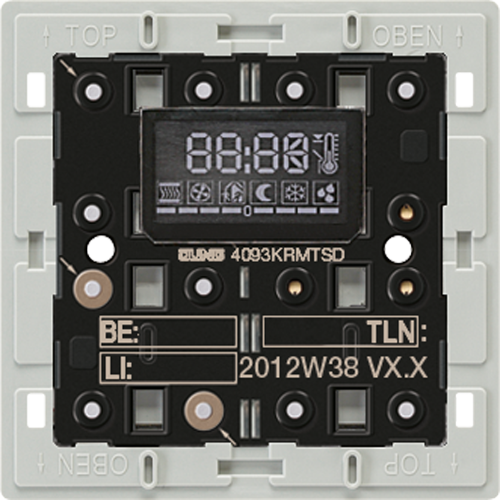

Room controller display compact module

Can be extended by means of a push-button extension module, ref.-no.: 409x TSEM

Adapter frames are included in delivery: ref.-no. LS 4 AR for LS range (pre-mounted) and ref.-no. CD 4 AR for CD range. AS / A ranges without adapter frame.

Recommended mounting height: 1.5 m

Intended use

Measurement and feedback control of the room temperature
Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc
Installation in wall box according to DIN 49073

Product characteristics

All buttons can be assigned with functions for controller operation.

Four red status LEDs
A blue operation LED as an orientation light and to indicate the programming status
Integrated bus coupling unit
Connection of push-button extension module
Integrated room temperature sensor
Room temperature control with setpoint value specification
Display of room or setpoint temperature
Display of outdoor temperature - with external sensor, e.g. weather station
Display of time, in conjunction with KNX time encoder
Push-button functions for switching, dimming, blinds control, valuators, light scenes, etc
Push-button function or rockers function, vertical or horizontal
Fan coil application with up to 8 fan speeds and auto function
Transparent cover kit (included) for temporary site use without design covers
