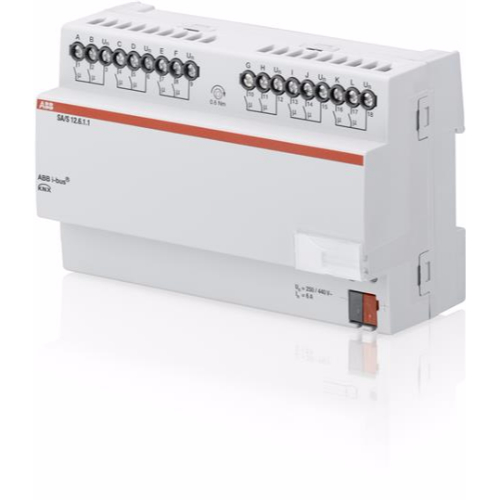

Switch Actuator, 12-fold, 6 A, MDRC

The 6 A Switch actuators SA/S x.6.1.1 are modular installation devices in Pro M Design for installation in the distribution board. The devices are suitable for switching resistive, inductive and capacitive loads.

The Switch actuators can switch up to 12 independent electrical loads via floating contacts. The outputs are connected using universal head screw terminals in groups of 2 contacts for SA/S 8.6.1.1 and SA/S 12.6.1.1. The SA/S 4.6.1.1 has one terminal per output for power feed. Each output is controlled separately via the KNX, regardless of the variant.

The device does not require an additional power supply and is ready for immediate use, after the bus voltage has been applied.

The Switch actuators are parameterized via the ETS. The connection to the KNX is implemented using the bus connection terminal on the front.
