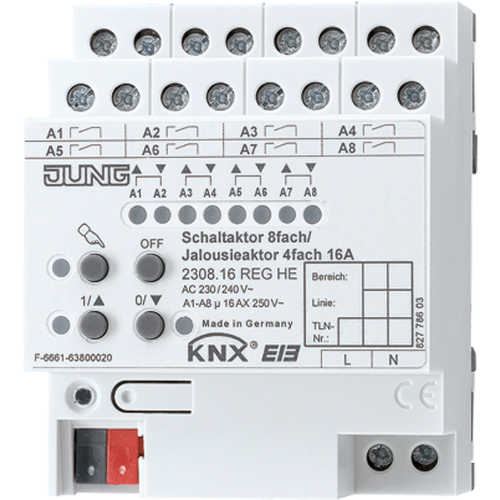

Switch actuator, 8-gang / blinds actuator
Part Number: 2308.16REGHE
Trade Price: £0.00
Price: £283.53
Description
Switch / blinds actuator, 8/4-gang
Rail mounting device, 4 rail units
Switch actuator: max. 8-gang
Blind actuator: max. 4-gang
Max. 4-gang switch actuator/2-gang blind actuator in combination
with manual electronic operation and LED status indication
Only with the ETS 3.0d version or later versions the full functionality will be available.
ETS product family: Output
Product type: Binary output
Intended use
- Switching of AC 110 ... 230 V electrical loads with floating contacts
- Switching of electrically-driven blinds, shutters, awnings and similar hangings
- Mounting on DIN rail in small distributors
- Outputs can be operated manually, construction site mode
- Feedback in manual mode and in bus mode
- Light scene function
- Disabling of individual outputs manually or via bus
Characteristics switch operation
- Operation as NO or NC contacts
- Logic and restraint function
- Feedback function
- Central switching function with centralized feedback
- Time functions: switch-on delay, switch-off delay, staircase lighting timer with pre-warning function
Characteristics blinds operation
- Suitable for 110 ... 230 V AC motors
- Hanging position directly controllable
- Slat position directly controllable
- Feedback of movement status, blind/shutter position and slat position
- Forced position through higher-level controller
- Safety function: 3 independent wind alarms, rain alarm, frost alarm
- Sun protection function
The total current of two adjacent outputs must not exceed 20 A.
