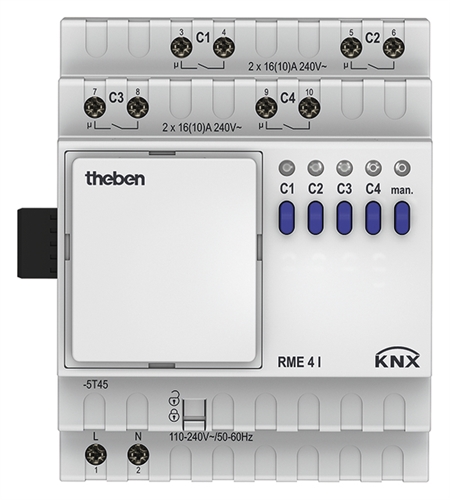

RME 4 I KNX

4-way C load switching actuator MIX2
With current recognition
For higher lamp loads
Extension module MIX2
For upgrading to maximum of 12 channels
Up to two extension modules MIX or MIX2 can be connected to one base module
Device and KNX bus module can be swapped independently of each other
Removable KNX bus module enables devices to be changed without reprogramming
Manual set-up and use of switching actuators is possible without KNX bus module
LED switching status display for each channel
Manual operation on device (even without bus connection)
Adjustable characteristics: e.g. switching, delayed switching, pulse function
Links, type of contact (NC contact/NO contact) and participation in central commands such as continuous On, continuous Off, central switching and save/call up scene
Switching functions: On/Off, pulse, On/Off delay, staircase light with warning
Logical links: e.g. lock, AND, release, OR
