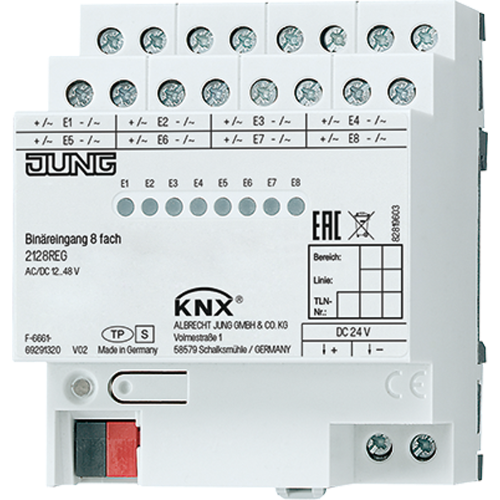

Binary input, 8-gang

Rail mounting device, 4 rail units
8 inputs 12 ... 48 V AC/DC
Auxiliary voltage output DC 24 V (SELV) for polling potential-free contacts
With status indicator
ETS product family: Input
Product type: Binary input

Intended use

Polling of conventional switching or push-button contacts, glass break detectors etc. in KNX systems, for reporting of states, operation of loads, etc.
Mounting on DIN rail according to EN 60715 in distribution boxes

Product characteristics

Status LED for each input
Detection of voltage levels and changes on the input
Transmitting the input state to the bus
Transmission behaviour freely settable
Functions: switching, dimming, blinds up/down, brightness values, temperatures, calling up and saving scenes
Inputs can be disabled separately
External AC and DC voltages can be connected
Auxiliary voltage output for polling potential-free contacts
No separate power supply required
Separate reference potentials for inputs
Pulse counter (firmware version V02 or higher), also suitable for S0 pulses
